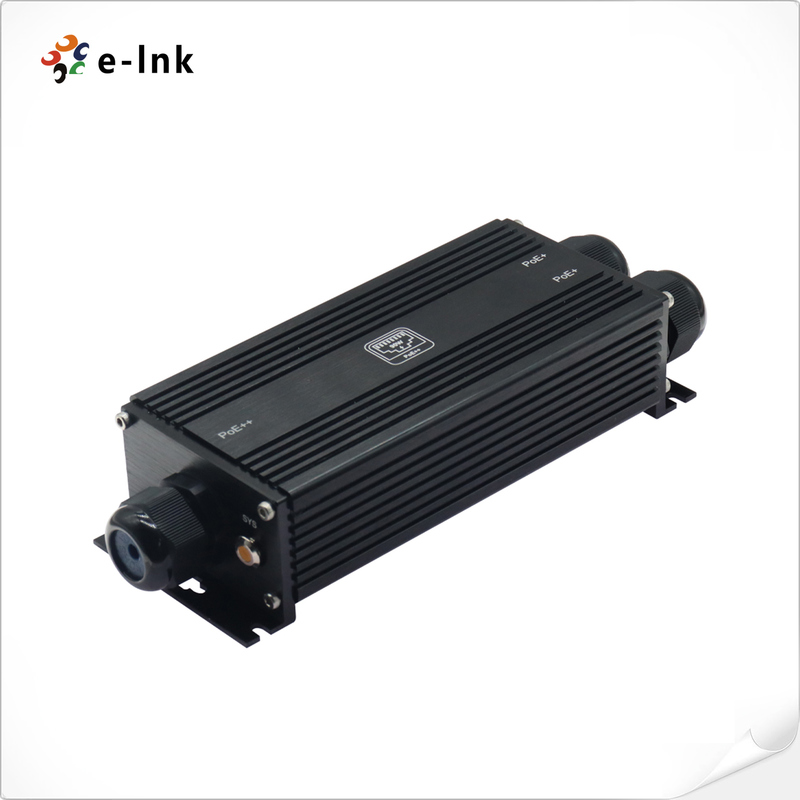

Industrial PoE Extender IP67 Waterproof 1 in 2 Out Gigabit 100m 802.3bt

Ürün Ayrıntıları

Menşe yeri: ÇİN

Marka adı: E-link

Sertifika: ISO9001, CE, ROHS, FCC

Model numarası: LNK-WP-IPE102

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 1 adet

Fiyat: US$50-US$65

Ambalaj bilgileri: HDMI Fiber PoE Genişletici Standart Karton Ambalaj

Teslim süresi: 1-3 iş günü

Ödeme koşulları: T/T, Western Union, MoneyGram, PayPal

Yetenek temini: 1000/ay

En İyi Fiyatı Bulun
Şimdi iletişime geçin
Özellikler
Vurgulamak:
Kademeli Bağlantı:
3. sınıf desteği
Giriş voltajı:
IEEE802.3 BT 90W
POE Çıkış Gücü:
Maksimum 65W
Anahtarlama kapasitesi:
6Gbps
Jumbo çerçeve:
10K Bayt
Boyutlar (WXDXH):
195 x 75 x 46 mm
Kademeli Bağlantı:
3. sınıf desteği
Giriş voltajı:
IEEE802.3 BT 90W
POE Çıkış Gücü:
Maksimum 65W
Anahtarlama kapasitesi:
6Gbps
Jumbo çerçeve:
10K Bayt
Boyutlar (WXDXH):
195 x 75 x 46 mm
Açıklama
Industrial PoE Extender IP67 Waterproof 1 in 2 Out Gigabit 100m 802.3bt

Industrial PoE Extender IP67 Waterproof 1 in 2 Out Gigabit 100m 802.3bt

Model : LNK-WP-IPE102


 Product Description & Overview

The LNK-WP-IPE102 is a professional-grade industrial Power over Ethernet extender engineered to

deliver reliable network expansion in demanding environmental conditions. This advanced 1-in-2-out

PoE extender features industrial IP67-rated waterproof construction with sealed housing and protected

terminal interfaces, providing complete defense against moisture, dust, and extreme weather conditions.

The device effectively extends Gigabit Ethernet connectivity up to 100 meters while delivering stable 50-57

V PoE power to multiple connected devices with total power capacity of 90W.


Designed for challenging deployment scenarios, this industrial network expansion solution maintains

optimal performance across a wide operating temperature range from -40°C to 80°C, ensuring continuous

operation in severe climate conditions. The intelligent power management system distributes 90W total

power while safeguarding connected equipment from voltage fluctuations and electrical surges. Perfect

for outdoor security surveillance systems, industrial automation networks, and telecommunications

infrastructure, this rugged PoE expansion device enables flexible multi-device deployment without

compromising data transmission quality or power reliability.


The compact and durable design incorporates advanced thermal management and corrosion-resistant

materials, making it ideally suited for permanent installations in manufacturing plants, transportation

networks, and remote monitoring applications. With its straightforward installation and maintenance-free

operation, this industrial PoE extender provides a cost-efficient solution for expanding network coverage

while maintaining enterprise-level performance standards in challenging environments, delivering dependable

connectivity for critical communication systems and multi-device security networks requiring reliable power

and data transmission.


Key Features Bullets

  • Industrial IP67-Rated Enclosure
    Waterproof aluminum housing provides complete environmental protection

  • Multi-Port PoE Expansion
    1 input + 2 output port configuration for flexible device connectivity

  • Extended Network Coverage
    Enables 100-meter Ethernet extension with full PoE power delivery

  • Universal PoE Compatibility
    All ports support IEEE 802.3af/at/bt standards

  • Extreme Temperature Operation
    Reliable performance across -40°C to 80°C range

  • Advanced Network Optimization
    2K MAC address table and 10kB jumbo frame support

  • Simplified Deployment
    Plug-and-play installation with wall-mount capability

  • High-Speed Data Transmission
    10/100/1000Mbps auto-negotiation on all ports

  • Self-Powered Operation
    No external power supply required for installation


Technical Specifications & Indexes



Ethernet Port

PoE Input Port

1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands

PoE Output Port

2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands

Cascade Connection

Support 3 grade

Power over Ethernet

PoE Standard

IEEE 802.3af/at/bt

PoE Power Supply Type

Mid-span and End-span

PoE Pin Assignment

1/2(+), 3/6(-), 4/5 (+), 7/8 (-)

Input Voltage

IEEE802.3 bt 90W

PoE Output Power

Maximum 65W

Single Port PoE Output

Maximum 60W

Switch Property

Standards

IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet

Forwarding Modes

Store and Forward

Transmission Distance

Each extender extends by 100m, max 3 grade Cascade, total 400m.

MAC Table

2K

Switching Capacity

6Gbps

Packet Forwarding Rate

4.46Mpps

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Jumbo Frame

10K bytes

Environment

Surge Immunity

6KV, Standard: IEC

ESD Protection

6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2

Protection Level

IP 67

Explosion-Proof Rating

IK10

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Operating Humidity

0~95% (non-condensing)

Physical Parameter

Dimensions (WxDxH)

195 x 75 x 46 mm

Weight

0.6 kg

Casing

Aluminum Case

Mounting Options

Wall-mount

Certifications

Certifications

CE, FCC, RoHS



Ordering information

Model

Description

 LNK-WP-IPE102

IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 2 x Output

Mounting Options

Wall Mount Bracket is included.



Application Scenarios

  • Extending connectivity for multiple outdoor security cameras

  • Supporting dual wireless access points in harsh environments

  • Enabling network expansion for industrial control systems

  • Providing PoE connectivity for outdoor digital signage networks

  • Facilitating multi-device deployments in transportation infrastructure
