Gigabit Passive PoE Kit Injector Splitter 9-48V IEEE 802.3at Compatible

Name: Gigabit Passive PoE Kit Injector Splitter 9-48V IEEE 802.3at Compatible
Brand: E-link China Technology Co.,LTD
SKU: LNK-POE2GP
Price: 8.90 USD
Availability: InStock

Ürün Ayrıntıları

Menşe yeri: ÇİN

Marka adı: E-link

Sertifika: ISO9001, CE, ROHS, FCC

Model numarası: LNK-POE2GP

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 1 adet

Fiyat: US$7.9-US$9.9

Ambalaj bilgileri: HDMI Fiber Optik Aksesuarları Standart Karton Ambalaj

Teslim süresi: 1-3 iş günü

Ödeme koşulları: T/T, Western Union, MoneyGram, PayPal

Yetenek temini: 1000/ay

En İyi Fiyatı Bulun

Şimdi iletişime geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:

Giriş voltajı:	9 ila 48 VDC +/- %5, Maksimum 56 VDC	Ethernet veri hızı:	10/100/1000 Mbps *1000 Mbps - 1 Gigabit
Maksimum çıkış akımı:	1A	İç Kablo Boyutu:	24 AWG Katı Bakır
Konut malzemesi:	Karams	DC Konnektör Boyutu:	5,5X2,1 mm

Giriş voltajı:	9 ila 48 VDC +/- %5, Maksimum 56 VDC
Ethernet veri hızı:	10/100/1000 Mbps *1000 Mbps - 1 Gigabit
Maksimum çıkış akımı:	1A
İç Kablo Boyutu:	24 AWG Katı Bakır
Konut malzemesi:	Karams
DC Konnektör Boyutu:	5,5X2,1 mm

Açıklama

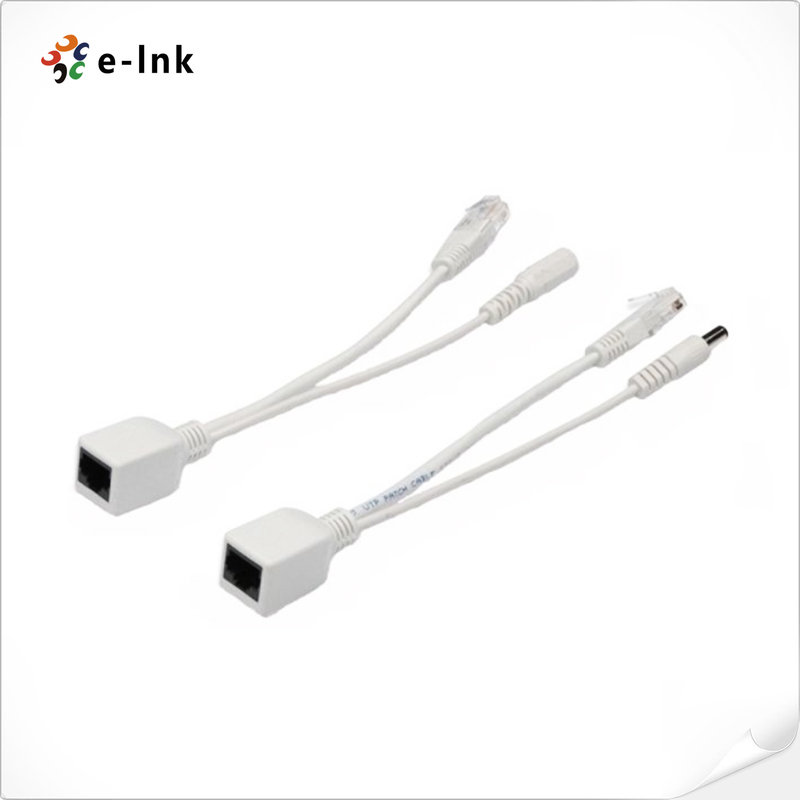

Gigabit Passive PoE Kit Injector Splitter 9-48V IEEE 802.3at Compatible

Model : LNK-POE2GP

Product Description & Overview

The LNK-POE2GP represents a professional-grade Gigabit Passive PoE solution that combines both

injector and splitter functionality in a single, cost-effective package. Engineered to meet rigorous

networking standards, this comprehensive kit delivers reliable power and data transmission for various

network deployments. The system features universal 5.5×2.1mm DC connectors and maintains full

compatibility with IEEE 802.3af/at specifications, ensuring seamless integration with modern network

infrastructure.

This advanced passive PoE kit supports comprehensive Ethernet speeds ranging from 10Mbps (10BASE

-T) to 1000Mbps (1000BASE-T), providing versatile connectivity options for diverse networking requirements.

The internal construction utilizes premium 24 AWG solid copper wiring with shielded connectors and integrated

drain wire, delivering superior signal integrity and electromagnetic interference protection. A clearly visible

green LED voltage indicator enables instant power status monitoring, simplifying installation and troubleshooting

processes.

Ideal for network administrators and installers, this Gigabit Passive PoE solution offers robust performance in

various applications including IP surveillance systems, wireless access points, and VoIP phone deployments.

The kit's optimized design ensures maximum power efficiency while maintaining data integrity across extended

cable runs. With its professional-grade components and thoughtful engineering, this complete PoE solution

provides exceptional value for both commercial and residential networking projects requiring reliable power-

over-Ethernet capabilities without the complexity of active PoE systems.

Key Features Bullets

Complete Plug-and-Play Solution
Includes both passive injector and splitter for immediate deployment
Universal Voltage Compatibility
9-48V wide input range with standard 2.1×5.5mm DC connectors
Full Gigabit Network Support
Maintains 10/100/1000Mbps data rates across all connected devices
Broad Device Compatibility
Works with APs, CPE, IP cameras, phones and other DC-powered equipment
Standard Power Supply Utilization
Uses existing powered device power adapters for cost efficiency
Extended Deployment Range
Supports operation up to 150 feet depending on cable quality
Professional-Grade Construction
IEEE 802.3af/at compliant design ensures reliable performance
Zero Configuration Required
True plug-and-play operation for instant network expansion

Technical Specifications & Indexes

Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX
	IEEE802.3ab 1000Base-T
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Input Voltage	9 to 48VDC +/- 5%, Maximum 56VDC
Power Pin Assignment	• Data provide over pairs 1/2(+) and 3/6(-)
Power Pin Assignment	• Power over spare pairs 4/5(+) and 7/8(-)
Ethernet Data Rate	10/100/1000 Mbps *1000 Mbps - 1 Gigabit
Maximum Output Current	1A
Over Current Protection	Yes
Ethernet Connectors	Shielded with Internal Drain Wire
Internal Wire Size	24 AWG Solid Copper
DC Connector Size	5.5 x 2.1 mm
LED	Green Indicating Voltage Present
Housing Material	ABS
Dimensions	Length = 8 inches (20.3 cm)
Weight:	96 grams (3.3 ounces)
Operating Temperature:	0°C to 45°C (-32°F to 113°F)
Storage Temperature:	-30°C to 70°C (-22°F to 158°F)
Relative Humidity:	5% to 90% non-condensing

Ordering information

Model	Description
LNK-POE-2GP	Gigabit 10/100/1000 802.3af/at Passive Power-over-Ethernet (PoE) Injector - Splitter Mid-Span Kit with 5.5 mm x 2.1 mm Size DC Connectors

Application Scenarios

Deploying wireless access points in small to medium business networks
Powering IP surveillance cameras in retail and office environments
Supporting VoIP phone systems with combined data and power delivery
Enabling network connectivity for CPE devices in remote locations
Providing cost-effective PoE solutions for budget-conscious projects
