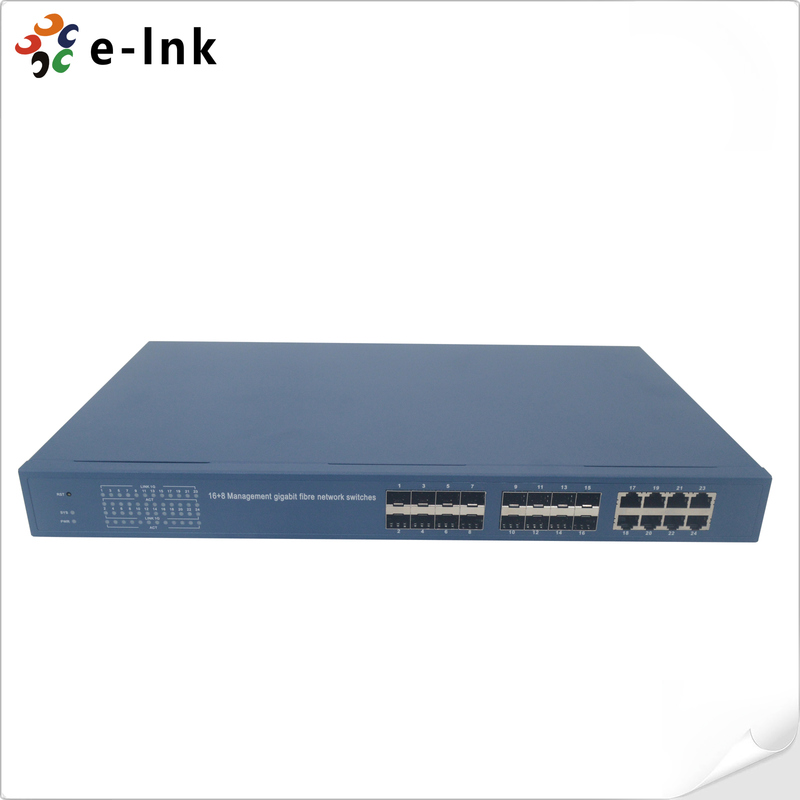

8G + 16SFP Management Gigabit Fiber Switch

Product Type

16+8 Management gigabit fiber network switches

Support agreement

IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak

Maximum frame length

9216B

Ports

16 1000M SFP optical ports and 8 10/100/1000M RJ45 ports

Network Media

1000Base-LX: using long wavelength laser (1310nm) over multimode and single mode fiber, multimode fiber the maximum distance is 550m, single mode 10-24km.

1000Base-SX: 62.5μm multimode fiber the maximum transmission distance of 275m, 50μm multimode fiber using the maximum transmission distance of 550 meters.

10Base-T: 3 classes or more than 3 kinds UTP; (maximum transmission distance of 200m), 14880P / S

100Base-TX: 5 Category UTP; (maximum transmission distance of 100m), 148800P / S

1000Base-T: CAT-5E UTP or Category 6 UTP; (maximum transmission distance of 100m), 1488000P / S

VLAN Address Table

4K

MAC address table

8K

Cache

32Mbits

Backplane bandwidth

52Gbit

Filtering and forwarding rate

10Mbps:14880pps

100Mbps:148800pps

1000Mbps:1488000pps

Dimensions

440x230x44mm(1U19-inch standard chassis)

Use of the environment

Operating Temperature: 0℃～40℃;

Humidity 10% ~ 90% non-condensing

Storage temperature:  -20℃~70℃;
Storage Humidity 5% ~ 90% non-condensing

Power

Input :90-264VAC ,50-60HZ; output: 5V/12A

Power consumption

Power consumption: 60W
