Mini HD-SDI over Fiber Extender
Mini HD-SDI over Fiber Extender
Mini HD-SDI over Fiber Extender Advantage
► Each channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s
► Directly compatible with HD-SDI camera systems
► Long transmission capability up to 80 km
► Terminal block power input; Hot swap and hot plug;
► Full digital non-compression broadcast level transmission;
► Super optic dynamic range and free of adjustment;
► Fiber optic WDM/CWDM/DWDM technique;
► industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;
Mini HD-SDI over Fiber Extender Overview
LNK-MHD Series Mini HD-SDI Fiber Extender supports 1-channelHD-SDI Video (audio embedded)
signal transmitted via fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one
transmitter and one receiver for HD-SDI signal. With compact size, it can easily integrate in other
devices. It’s widely used in surveillance and broadcasting area.
Mini HD-SDI over Fiber Extender Technical Indexes
|
Fiber Optical interface
|
|
Fiber interface
|
Simplex LC
|
|
Transmission distance
|
550m-20Km
|
|
Wavelength
|
1310nm/1550nm
|
|
Video
|
|
Video interface
|
BNC
|
|
Video input/output impedance
|
75Ω
|
|
Video input/output voltage
|
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
|
|
Video Bits Rate
|
Max 1.48Gb/s
|
|
Differential gain (10%～90% APL)
|
<1%
|
|
SDI format support
|
625/25 PAL
|
|
525/29.97 NTSC, 525/23.98 NTSC
|
|
720p50, 720p59.94
|
|
1080i 23/24/30/50/59.94
|
|
Video SDI standard
|
270Mbps (SD-SDI)
|
|
1.485Gbps (HD-SDI)
|
|
Electrical
|
|
Power adaptor
|
5V DC, Type-C Interface
|
|
Power consumption
|
<3W
|
|
LED Indicator
|
|
SDI
|
SDI video
|
|
P/T
|
Power Supply
|
|
Mechanical
|
|
Dimensions (LxWxH)
|
79 x 27 x 18 mm
|
|
Weight
|
0.5KG/pair
|
|
Casing
|
Aluminum Case
|
|
Mounting Options
|
Desktop
|
|
Environmental
|
|
Working Temperature
|
-20℃～+70℃
|
|
Storage Temperature
|
-40℃～+80℃
|
|
Operating humidity
|
5%~90% non-condensing
|
|
Storage humidity
|
5% ~ 90% non-condensing
|
|
MTBF
|
≥100000 hours
|
Mini HD-SDI over Fiber Extender Ordering Information
|
Model
|
Description
|
|
LNK-MHD-MM
|
Mini HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
|
|
LNK-MHD-20
|
Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
|

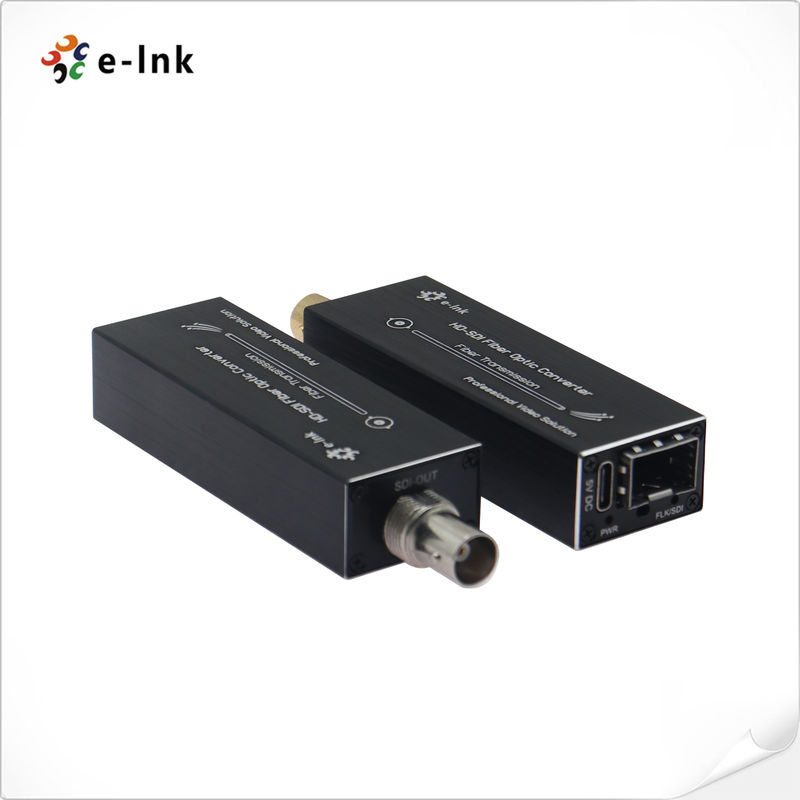

Mini HD-SDI over Fiber Extender Picture
Mini HD-SDI over Fiber Extender Application
