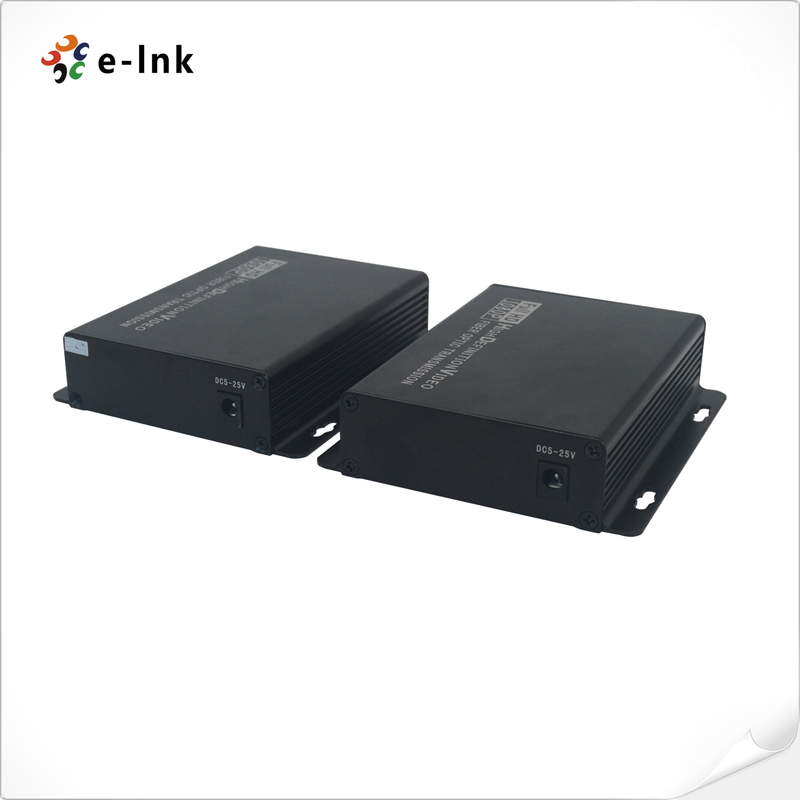

3G/HD-SDI to Fiber Converter

Fiber Optical interface

Fiber interface

Simplex FC

Transmission distance

550m-20Km

Wavelength

1310nm/1550nm

Video

Video interface

BNC

Video input/output impedance

75Ω

Video input/out put voltage

Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp

Video Bits Rate

Max 3.2Gb/s

Differential gain (10%～90% APL)

<1%

Video SDI standard

270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)

Data

Physical interface

Industrial standard screw terminal

Data type

RS422/RS485 Reverse Direction

Frequency/Rate support

Max. 115200bps for RS422

Max. 57600bps for RS485

BER

<10ˉ⁹

Electrical

Power adaptor

DC 5~25V

Power consumption

<5W

LED Indicator

P/S

Power Supply

DAT

Data

Mechanical

Dimensions (LxWxH)

120 x 105 x 28 mm

Weight

0.43KG/pair

Casing

Aluminum Case

Mounting Options

Wall-mount

Environmental

Working  Temperature

-20℃～+70℃

Storage Temperature

-40℃～+80℃

Working  Humidity

0~95%

MTBF

≥100000 hours

Model

Description

LNK-HD-110-20

HD-SDI to Fiber Converter with RS422 reverse data and loop out, SMF, FC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

LNK-3G-110-20

3G-SDI to Fiber Converter with RS422 reverse data and loop out, SMF, FC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
