Unmanaged 4-Port 10/100Mbps Ethernet Switch Module

Name: Unmanaged 4-Port 10/100Mbps Ethernet Switch Module
Brand: E-link China Technology Co.,LTD
SKU: LNK-SM004
Price: 130.00 USD
Availability: InStock

Ürün Ayrıntıları

Place of Origin: China

Marka adı: E-link

Sertifika: ISO9001, CE, FCC, RoHS

Model Number: LNK-SM004

Belge: E-link Unmanaged 4-Port 100....0.pdf

Ödeme ve Nakliye Şartları

Minimum Order Quantity: 1pcs

Fiyat: Anlaşılabilir

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

En İyi Fiyatı Bulun

Şimdi iletişime geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:

Humidity:	5%~90% non-condensing	Weight:	12g
Dimensions:	38 x 38 x 7mm	Working temperature:	-10~60℃
Power consumption:	0.9W@12VDC (No Load) 2W@12VDC (Full Load)	Power Input:	12VDC (9~12VDC)

Humidity:	5%~90% non-condensing
Weight:	12g
Dimensions:	38 x 38 x 7mm
Working temperature:	-10~60℃
Power consumption:	0.9W@12VDC (No Load) 2W@12VDC (Full Load)
Power Input:	12VDC (9~12VDC)

Açıklama

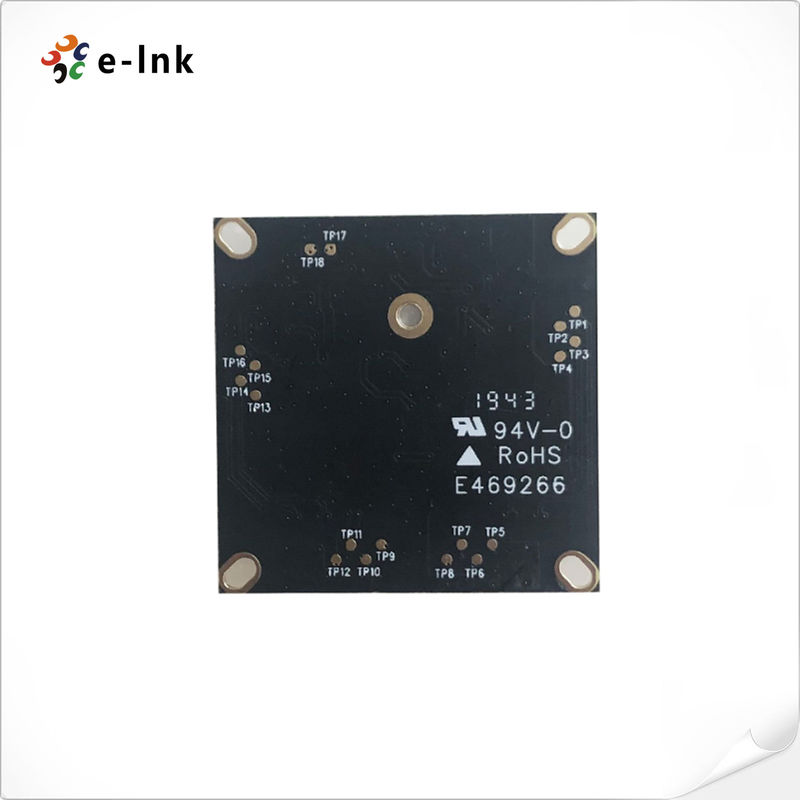

Unmanaged 4-Port 10/100Mbps Ethernet Switch Module

Product Advantages

l Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards;

l Full-duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard;

l 4-Port 10/100M self-adaptive pin network ports, support Auto MDI / MDIX

l Each port supports auto-negotiation function to automatically adjust the transmission mode and transmission rate;

l Support MAC address self-learning;

l Support full-speed forwarding non-blocking communication

l Mini size design, 38X38MM (length x width)

l Dynamic LED indicator provides simple working status tips and troubleshooting;

l Supports 9-12V power input

Overview

E-link LNK-SM004 series is 4 port 10/100/Mbps unmanaged switch module, offer 4 port 10/100Mbps auto negotiation port, high integration design, small and exquisite, portable, suit for medium and small office and home network. Using store-and-forward technology, combined with dynamic memory allocation, ensure allocate to each port effectively. Its wires peed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.

Technical Indexes

Parameter	Specification
Standards	IEEE802.3 10Base-T Ethernet
	IEEE802.3u 100Base-TX Fast Ethernet
	IEEE802.3x Full-duplex Flow Control
Network Media (Cable)	10Base-T: UTP category 3, 4, 5 cable (maximum100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
Interface	10Base-T/100Base-TX RJ45
LED Indicator	LINK/ACT: 1~4 Port PWR: Power
Number of Ports	4 x 10/100Mbps Auto-Negotiation ports
Switch Processing Scheme	Store-and-Forward
MAC Address Table	1K
Share Data Buffer	Built-in
Flow Control	Back pressure half duplex, IEEE 802.3x pause frame full duplex
Switch Fabric	1Gbps
Throughput (packet per second)	0.744Mpps
Maximum Packet Size	1536bytes
MTBF	100,000 hours
Power Input	12VDC (9~12VDC)
Power PIN-type	2-PIN terminal block, pitch 1.25MM
Power consumption	0.9W@12VDC (No Load) 2W@12VDC (Full Load)
Working temperature	-10~60℃
Storage temperature	-40~85℃
Humidity	5%~90% non-condensing
Weight	12g
Dimension (LxWxH)	38 x 38 x 7mm

Ordering Information

Model	Description
LNK-SM004	Mini 4-Port 10/100M Ethernet Switch PCB Module
