Mini 4K HDMI Fiber Extender with RS232 & External Audio

Name: Mini 4K HDMI Fiber Extender with RS232 & External Audio
Brand: E-link China Technology Co.,LTD
SKU: LNK-MHRA4K Serisi
Price: 134.00 USD
Availability: InStock

Ürün Ayrıntıları

Menşe yeri: ÇİN

Marka adı: E-link

Sertifika: CE, FCC, RoHS

Model numarası: LNK-MHRA4K Serisi

Belge: E-link LNK-MHRA4K Series Mi....0.pdf

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 1 adet

Fiyat: Anlaşılabilir

Ambalaj bilgileri: Karton ambalaj

Teslim süresi: 3-12 iş günü

Ödeme koşulları: L/C, T/T, Western Union, MoneyGram, PayPal

Yetenek temini: 1000 PC/Ay

En İyi Fiyatı Bulun

Şimdi iletişime geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                      RS232 Mini 4K HDMI Fiber Extender, External Audio HDMI Fiber Extender, 4K HDMI Fiber Extender


Güç kaynağı:	5V DC, USB Tip-C	Çalışma sıcaklığı:	-10 ila + 50°C
Saklama sıcaklığı:	-20 ila + 80°C	Nem:	%5 ila %90 RH (yoğuşmasız)
Ağırlık:	60 gr / 0,13 lb	Boyut (GxDxY):	2,87 x 1,73 x 0,69 inç (73x44x17 mm)

Güç kaynağı:	5V DC, USB Tip-C
Çalışma sıcaklığı:	-10 ila + 50°C
Saklama sıcaklığı:	-20 ila + 80°C
Nem:	%5 ila %90 RH (yoğuşmasız)
Ağırlık:	60 gr / 0,13 lb
Boyut (GxDxY):	2,87 x 1,73 x 0,69 inç (73x44x17 mm)

Açıklama

Mini 4K HDMI Fiber Extender with RS232 & External Audio

Advantages

► HDMI 1.4a and HDCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC HPDT Signal Support

► Data rate up to 10.2Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

► Support external stereo audio

► Support Serial RS232 Signal

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► Operating Case Temperature: -10~50°C

Overview

The LNK-MHRA4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal, RS232 signal and stereo audio over optical fiber up to distances of 80km, at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Technical Indexes

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Connector	Female HDMI type A
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Max 38402160@60Hz (4:2:0) Max 38402160@30Hz (4:4:4, 4:2:2)
EDID	Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually
Audio Interface	3.5MM external stereo audio
RS232	3 Pin terminal, Baud rate ≤ 38400
Fiber Connector	SFP/LC
Bandwidth	10.2Gbps
Transmission Distance	300m (Over OM3 Fiber)
Transmission Distance	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 to + 50°C
Storage Temperature	-20 to + 80°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours
Dimension (WxDxH)	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight	60g / 0.13 lb
Power Supply	5V DC, USB Typ-C
Power dissipation	<5W
Safety Approvals	CE, FCC, Rohs

Order Information

Model	Description
Model	Description
LNK-MHRA4K-MM	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S20	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S40	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input
LNK-MHRA4K-S80	Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input

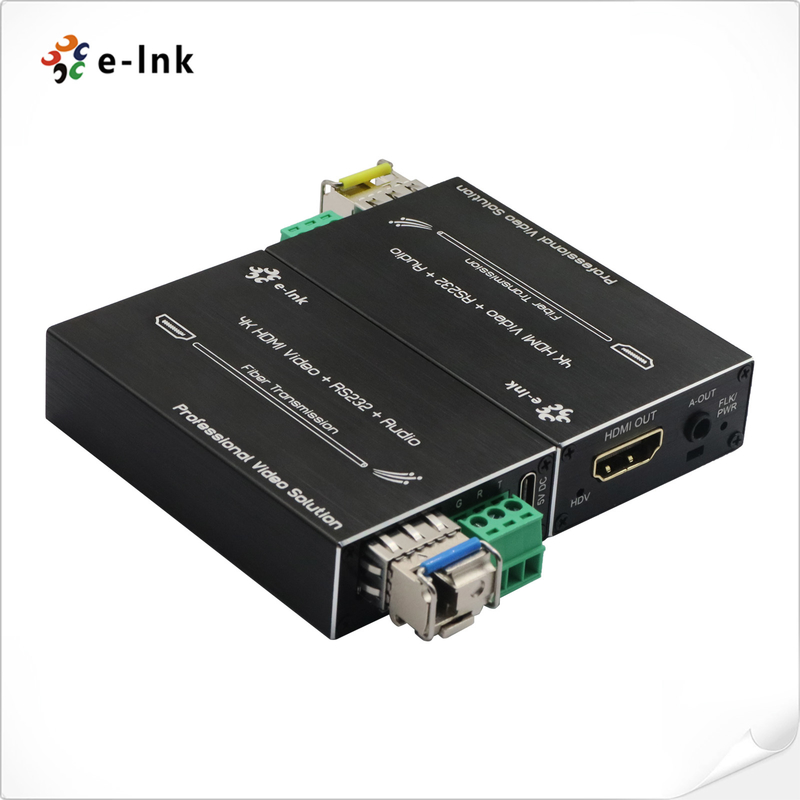

Mini 4K HDMI Fiber Extender with RS232 & External Audio 0

Application

Mini 4K HDMI Fiber Extender with RS232 & External Audio 1
