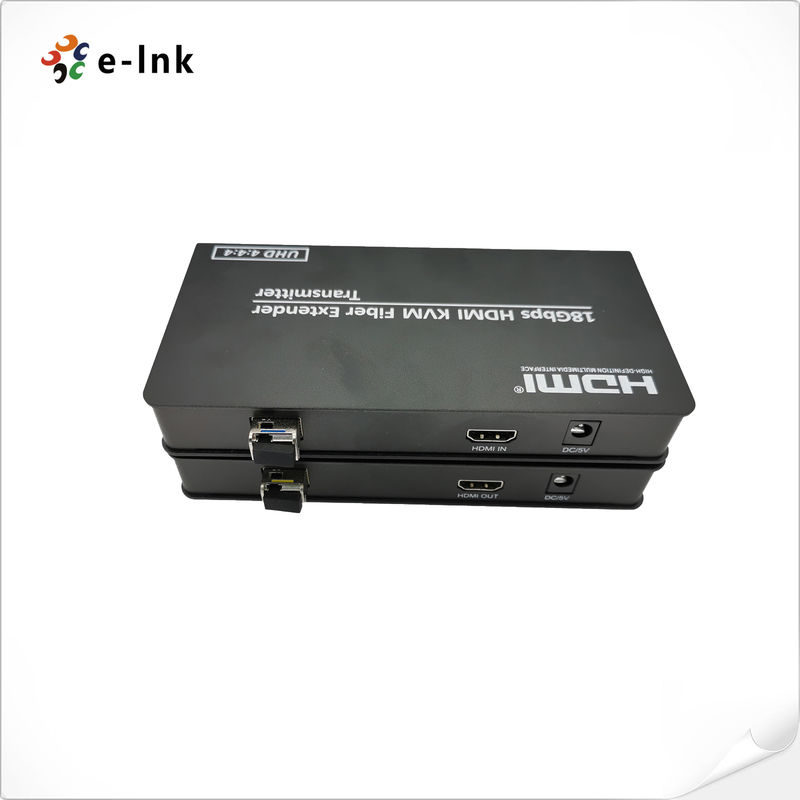

4K HDMI 2.0 KVM USB over Fiber Optic Extender

4K HDMI 2.0 KVM USB over Fiber Optic Extender

4K HDMI 2.0 KVM USB over Fiber Optic Extender Advantages

► Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF

► Support keyboard and mouse signal transmission

► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit

► Supports HDCP 2.2

► Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse, fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

► Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse), fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

► Simple to install, plug and play

4K HDMI 2.0 KVM USB over Fiber Optic Extender Overview

LNK-HF201KM KVM Video Signal Extender HDMI 2.0, USB (keyboard / mouse). It consists of two modules that are interconnected by means of single-mode or multimode fiber optic cable. It allows working at a maximum resolution of 4K HDMI video. The maximum cable distance can be up to 10 km via Single Mode Fiber or 300 meters via OM3 Multimode Fiber.

4K HDMI 2.0 KVM USB over Fiber Optic Extender Technical Indexes

4K HDMI 2.0 KVM USB over Fiber Optic Extender Ordering Information
