Media Converter 10/100/1000M Gigabit Ethernet(with External Power Supply) SFP Slot
Media Converter10/100/1000M Gigabit Ethernet (with External Power Supply) SFP Slot
Model: LNK-3011WSFP
Overview

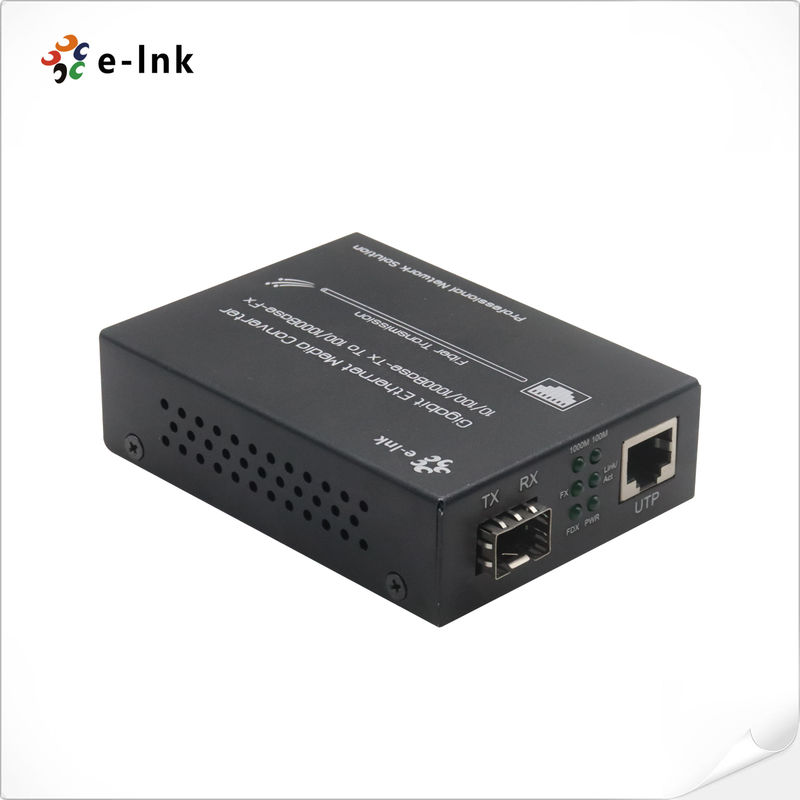

The Media Converter10/100/1000M Gigabit Ethernet (with External Power Supply) SFP Slot
(model: LNK-3011WSFP) is a high-reliability network conversion device designed to bridge
UTP copper cabling and fiber SFP (Small Form-Factor Pluggable) transceivers. As a Media
Converter10/100/1000M Gigabit Ethernet (with External Power Supply) SFP Slot, it strictly
complies with IEEE802.3, IEEE802.3u, IEEE802.3z, and IEEE802.3ab standards, ensuring
seamless integration into diverse network infrastructures.
This Media Converter10/100/1000M Gigabit Ethernet (with External Power Supply) SFP Slot
supports two critical media network connections: 10Base-T/100Base-TX/1000Base-T (copper)
and 1000Base-SX/LX (fiber). It efficiently inter-converts electrical signals from 10Base-T/100
Base-TX/1000Base-T twisted pairs with optical signals from 1000Base-SX/LX, overcoming the
100m distance limit of copper cables by extending transmission up to 120km via fiber optic cables.
A key advantage of this Media Converter10/100/1000M Gigabit Ethernet (with External Power
Supply) SFP Slot is its dedicated SFP slot, which enables flexible compatibility with various SFP
transceivers, adapting to different fiber types and transmission requirements. Equipped with an
external power supply, it ensures stable operation in industrial or high-demand environments
where reliable power is critical. This combination of versatility and stability makes it an ideal
choice for extending gigabit networks over long distances.
Features
► Supporting inter-conversion between adaptive
► 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
► Use Port 10/100/1000Base-TX (RJ45), 1000Base-SX/LX (SFP slot)
► Supporting full-duplex and half-duplex and its auto-sensed
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Supporting the transmission of extra-long VLAN packets
► Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets
Technical Indexes
| Parameter |
Specifications |
| Access mode |
10/100/1000Mbps Gigabit Ethernet |
| Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Wavelength |
850nm/1310nm/1550nm |
| Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) |
| single mode Dual-fiber: 20/40/60/80 Km |
| single mode Single fiber: 20/40/60/80 Km |
| Category-5 twisted pairs: 100m |
| Port |
One RJ45 port: for connecting with STP/UTP category-5 twisted pairs |
| One optical port: SFP 3.3V |
| Conversion means |
Media conversion |
| BER |
<10-9 |
| MTBF |
100,000 hours |
| LED indicator |
POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action) |
| Power supply |
External Power: AC90~240V input, 5V2A output |
| Power consumption |
5W |
| Operating temperature |
-10~55ºC |
| Operating humidity |
5%~90% |
| Maintaining temperature |
-40~70ºC |
| Maintaining humidity |
5% ~ 90% non-condensing |
| Dimensions (W x D x H) |
71 x 94 x 26 mm |
Order Information
| Model |
Description |
| LNK-3011WSFP |
10/100/1000Base-T to 1000Base-F,SFP slot, excl. SFP module, standalone, external power adaptor |
