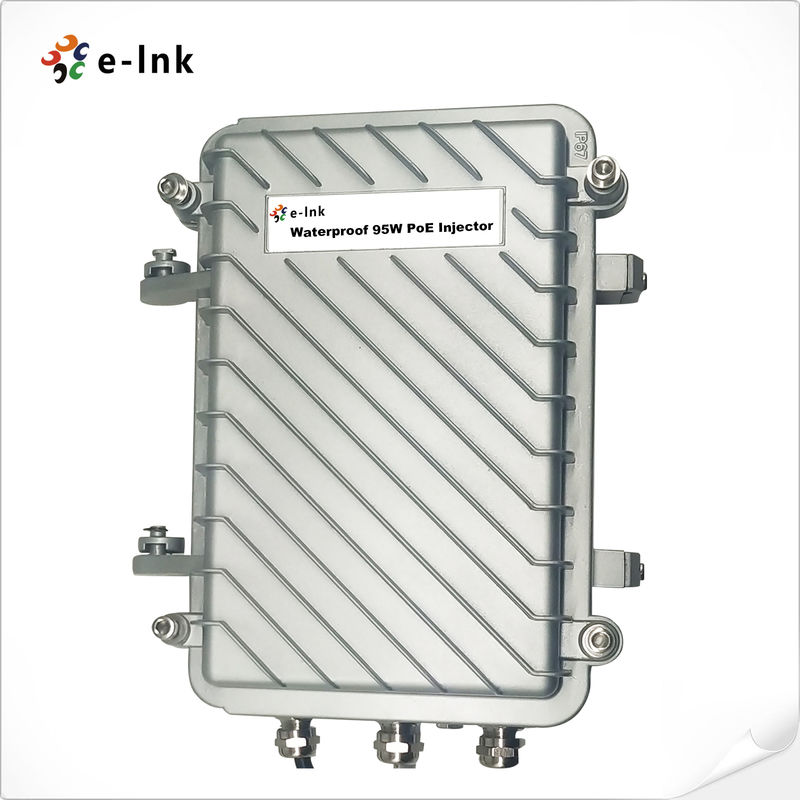

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection

Name: Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection
Brand: E-link China Technology Co.,LTD
SKU: LNK-WP901
Price: 57.00 USD
Availability: InStock

Ürün Ayrıntıları

Place of Origin: China

Marka adı: E-link

Sertifika: ROHS,FCC,CE

Model numarası: LNK-WP901

Ödeme ve Nakliye Şartları

Minimum Order Quantity: 1 pcs

Fiyat: Anlaşılabilir

Ambalaj bilgileri: Enjektör Standart İhracat Paketi

Teslim süresi: 3-12 iş günü

Ödeme koşulları: L/C, T/T, Western Union, MoneyGram, PayPal

Yetenek temini: 1000 PC/Ay

En İyi Fiyatı Bulun

Şimdi iletişime geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                      Waterproof Industrial PoE Injector, 95W Industrial PoE Injector, 6KV Surge Protection PoE Injector


Anahtar Kelimeler:	PoE Enjektörü	Çalışma sıcaklığı:	-40 ℃ ila 80 ℃
Boyutlar (W x D x H):	260mm x 210mm x 80mm	Ağırlık:	1.5kg
Nem:	%10 ila %90, yoğuşmasız	Giriş gücü:	48~57VDC

Anahtar Kelimeler:	PoE Enjektörü
Çalışma sıcaklığı:	-40 ℃ ila 80 ℃
Boyutlar (W x D x H):	260mm x 210mm x 80mm
Ağırlık:	1.5kg
Nem:	%10 ila %90, yoğuşmasız
Giriş gücü:	48~57VDC

Açıklama

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Advantages

► Protection level: IP67

► 6KV(10/700us) surge protection on LAN, PoE ports

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power)

► Support 95W LTPoE++ Power Sourcing Equipment

► Supports Wall-mount installation

► Environmentally hardened -40°C to 80°C(-40°F to 176°F) operating temperature

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Overview

LNK-WP901 provides 95W PoE power for remote PDs over 4 pairs output with 6KV (10/700us) surge protection, fully compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, a long with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Technical Indexes

Parameter	Specifications
Standard	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at/bt, PoE++ RoHS Compliance WEEE Compliance Protection Level: IP67, IEC60529, NEMA 250
Input & Output	Input : 48~57VDC Output: IEEE802.3bt 95W Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps
Working Environment	Operating Temperature: -40℃ to 80℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters
AC Surge Protection	Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV
PoE Surge Protection	Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Ordering Information

Model	Description
LNK-WP901	Outdoor Waterproof Industrial 95W Gigabit PoE Injector with Surge Protection
