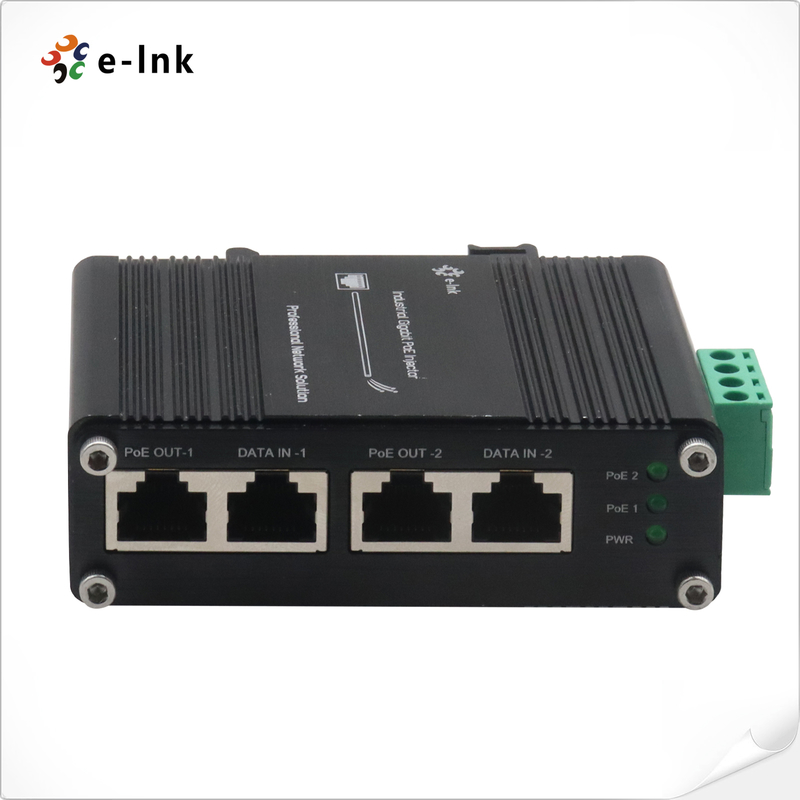

12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector

Name: 12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-INJ302
Price: 57.00 USD
Availability: InStock

Ürün Ayrıntıları

Place of Origin: China

Marka adı: E-link

Sertifika: ISO9001, CE, FCC, RoHS

Model numarası: LNK-INJ302

Ödeme ve Nakliye Şartları

Minimum Order Quantity: 1pcs

Fiyat: Negotiated

Ambalaj bilgileri: Standart İhracat Paketi

Teslim süresi: 5-12 Çalışma Günleri

Ödeme koşulları: T/T, PayPal

Supply Ability: 1000pcs/mouth

En İyi Fiyatı Bulun

Şimdi iletişime geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                      2-Port Industrial PoE+ Injector, 12~48VDC Industrial PoE+ Injector


Giriş gücü:	12~48V DC Yedek Güç	Boyutlar (WXDXH)::	95 x 70 x 30 mm
Ağırlık::	0.26kg	Muhafaza:	Alüminyum kasa
Montaj Seçenekleri::	Din-rail / duvar montajı	Çalışma sıcaklığı::	-40 ° C ila 80 ° C (-40 ° F ila 176 ° F)

Giriş gücü:	12~48V DC Yedek Güç
Boyutlar (WXDXH)::	95 x 70 x 30 mm
Ağırlık::	0.26kg
Muhafaza:	Alüminyum kasa
Montaj Seçenekleri::	Din-rail / duvar montajı
Çalışma sıcaklığı::	-40 ° C ila 80 ° C (-40 ° F ila 176 ° F)

Açıklama

12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector

Advantage

► 12~48VDC Power Input

► 2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Max 60W PoE at one port, total POE power less than 60W

► Support 10/100/1000Base-TX

► Support DIN-Rail & Wall-mount installation.

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

The LNK-INJ302 product is a Hardened 2 ports Gigabit High Power PoE Injector allows you to connect the

IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance

of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T

and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at. LNK-INJ302

provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.


12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector 0

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Forward
	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	4x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	70W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	60W Max (Alternative B Mode)

Application

12~48VDC Power Input Industrial 2-Port Gigabit PoE+ Injector 1

Ordering Information

Model	Description
LNK-INJ302	12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
