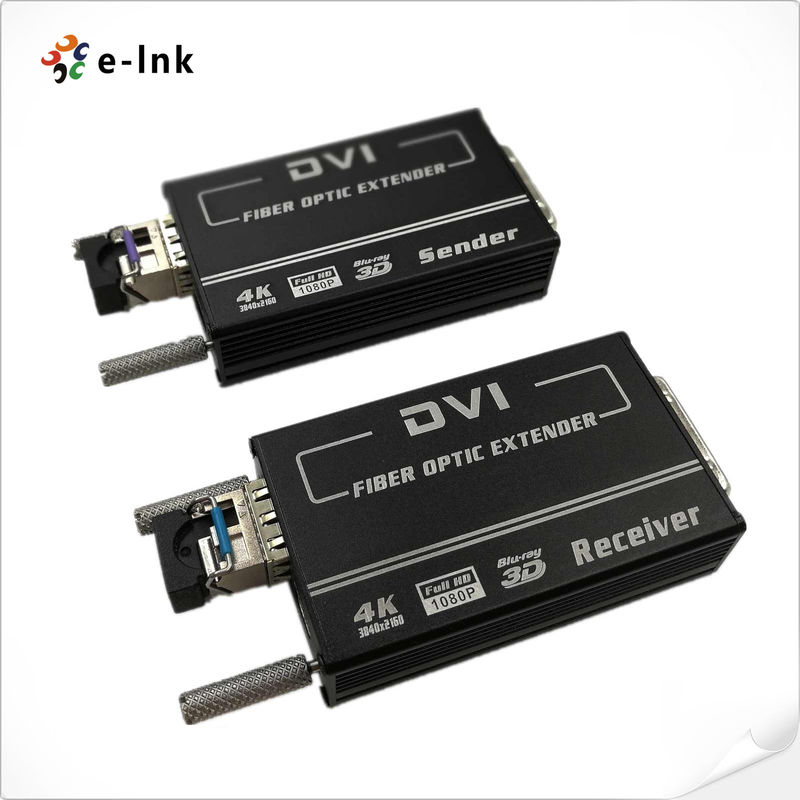

Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID

Name: Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID
Brand: E-link China Technology Co.,LTD
SKU: LNK-D4K-MM
Price: 229.00 USD
Availability: InStock

Ürün Ayrıntıları

Menşe yeri: Çin

Marka adı: E-link

Model numarası: LNK-D4K-MM

Belge: E-link LNK-D4K-MM Mini 4Kx2....0.pdf

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 1 adet

Fiyat: Anlaşılabilir

Ambalaj bilgileri: Karton Ambalaj

Teslim süresi: 3-12 İş Günü

Ödeme koşulları: L/C,T/T,Western Union,MoneyGram,Paypal

Yetenek temini: 1000 PCS/ay

En İyi Fiyatı Bulun

Şimdi iletişime geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                      Auto EDID DVI Fiber Transceiver, Mini DVI Fiber Transceiver, 300M DVI Fiber Transceiver


The warranty:	1-year warranty	Dimensions (WxDxH):	69mm x 42 mm x 18.2 mm
Operating Temperature:	32° to +112° F. (0° to +50° C)	Storage Temperature:	-40° to +185° F. (-40° to +85° C)
Fiber Cable:	50/125μ OM3 Multi-Mode Fiber:≤300m	EDID Support:	Support EDID pass-through

The warranty:	1-year warranty
Dimensions (WxDxH):	69mm x 42 mm x 18.2 mm
Operating Temperature:	32° to +112° F. (0° to +50° C)
Storage Temperature:	-40° to +185° F. (-40° to +85° C)
Fiber Cable:	50/125μ OM3 Multi-Mode Fiber:≤300m
EDID Support:	Support EDID pass-through

Açıklama

Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID

Advantages

► Support DVI 1.0 and HDMI v1.4

► Support EDID pass-through.

► Support resolutions up to 3840x2160/30P

► 7.1 channel LPCM, 192 kHz, 24-bit

► Support 3840*2160/60P(YUV 420)

► Plug and Play ,Built-in EQ(Receiver)

► Support 4K/30P@ Single-Link

► Two fiber,2-ways

► Bandwidth up to 10.2 Gbps

► Up to 300m distance by Multimode Fiber

► Support the HDCP 1.4

► Low RFI / EMI

► Support 3D TV pass-through

► Surface-mountable

Overview

E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular in the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.

The LNK-D4K-MM series is a high performance 4K Optical Extender that transmits high resolution DVI signals over extreme distances using one fiber. This extender supports HDMI v1.4 signals with resolutions up to 4K (3840*2160/30p) over cable distances up to 300m.

Order Information

Model	Description
LNK-D4K-MM-S	Mini 4KX2K DVI Fiber Sender Auto EDID,DC5V1A
LNK-D4K-MM-R	Mini 4KX2K DVI Fiber Receiver Auto EDID,DC5V1A


Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID 0

Application

Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID 1
