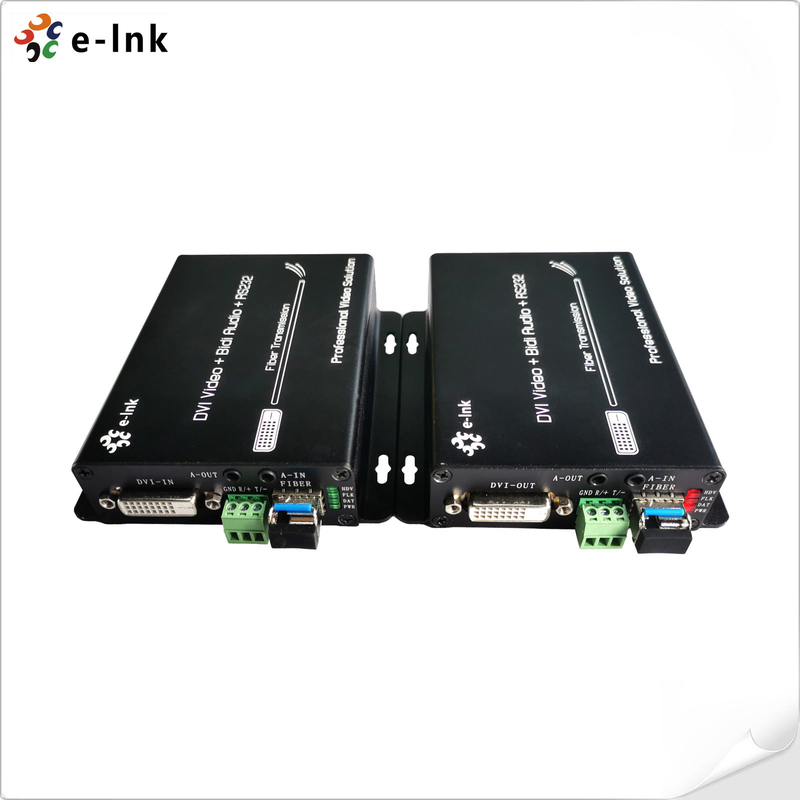

DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

Name: DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-DVI-1D1BA fiber optik genişletici
Price: 229.00 USD
Availability: InStock

Ürün Ayrıntıları

Menşe yeri: Çin

Marka adı: E-link

Model numarası: LNK-DVI-1D1BA fiber optik genişletici

Belge: E-link LNK-DVI-1D1BA DVI+Bi....0.pdf

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 1 adet

Fiyat: Anlaşılabilir

Ambalaj bilgileri: Karton Ambalaj

Teslim süresi: 3-12 İş Günü

Ödeme koşulları: L/C,T/T,Western Union,MoneyGram,Paypal

Yetenek temini: 1000 PCS/ay

En İyi Fiyatı Bulun

Şimdi iletişime geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                      RS232 over Fiber Optic Extender, Bidirectional Stereo Audio Fiber Extender, DVI over Fiber Optic Extender


The warranty:	1-year warranty	Dimensions (WxDxH):	120 x 83 x 28 (mm)
Operating Temperature:	-20℃ ~ +70℃	Humidity:	5% ~ 90%
Power dissipation:	MAX 4W	Power supply:	The power adapter: DC 5V

The warranty:	1-year warranty
Dimensions (WxDxH):	120 x 83 x 28 (mm)
Operating Temperature:	-20℃ ~ +70℃
Humidity:	5% ~ 90%
Power dissipation:	MAX 4W
Power supply:	The power adapter: DC 5V

Açıklama

DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

Advantages

► Transmits DVI video signals, RS232 and audio up to 20km over a single fiber cable;

► Support resolution up to 1920*1200@60Hz ;

► Special support 1600*1200 @60HZ

► Support external bidirectional stereo audio transmission;

► Compliance with DVI 1.0 and HDCP 1.2 standard;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;

Overview

The LNK-DVI-1D1BA Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.


DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender 0

Application

DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender 1
