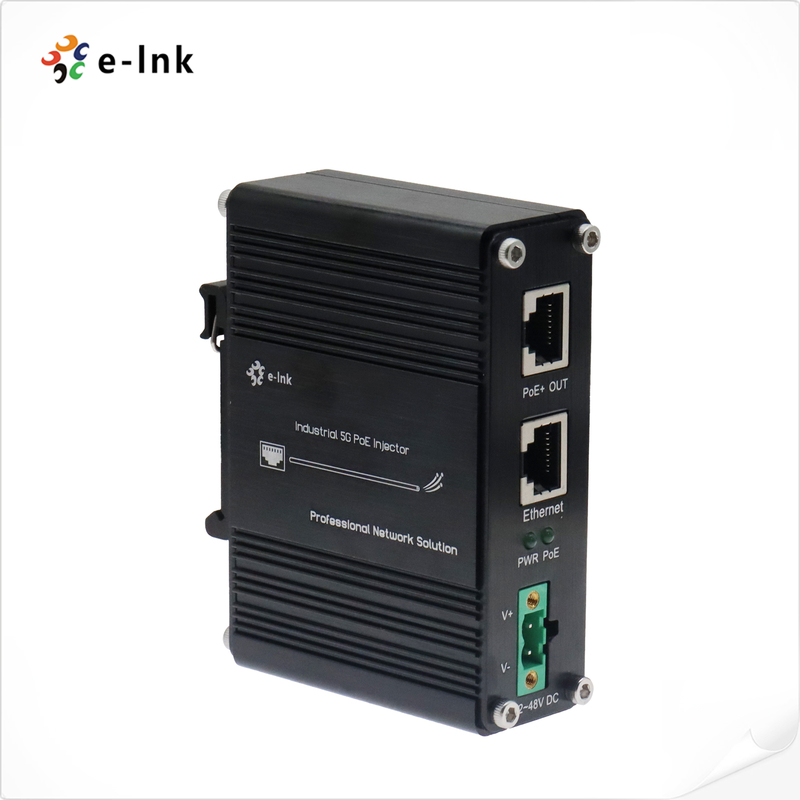

12~48V DC Power Input Industrial 5G 30W PoE+ Injector

Name: 12~48V DC Power Input Industrial 5G 30W PoE+ Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-INJ501-30
Price: 57.00 USD
Availability: InStock

Ürün Ayrıntıları

Menşe yeri: Çin

Marka adı: E-link

Sertifika: CE, RoHS, FCC

Model numarası: LNK-INJ501-30

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 1 PC

Fiyat: Anlaşılabilir

Ambalaj bilgileri: PoE Enjektör Adaptörü Standart İhracat Paketi

Teslim süresi: 5-12 iş günü

Ödeme koşulları: L/C, T/T, Western Union, MoneyGram, Paypal

Yetenek temini: 1000 PCS/AY

En İyi Fiyatı Bulun

Şimdi iletişime geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                      5G PoE+ Injector, 5G PoE Injector


Anahtar kelime:	PoE Enjektör Adaptörü	Giriş gücü:	12~48VDC (Klemens Bloğu)
Güç pimi:	4/5(+), 7/8(-)	Boyutlar (WxDxH):	95x70x30mm
Ağırlık:	0.25KG	Montaj Seçenekleri:	DIN-Ray / Duvara montaj

Anahtar kelime:	PoE Enjektör Adaptörü
Giriş gücü:	12~48VDC (Klemens Bloğu)
Güç pimi:	4/5(+), 7/8(-)
Boyutlar (WxDxH):	95x70x30mm
Ağırlık:	0.25KG
Montaj Seçenekleri:	DIN-Ray / Duvara montaj

Açıklama

12~48V DC Power Input Industrial 5G 30W PoE+ Injector

12~48V DC Power Input Industrial 5G 30W PoE+ Injector

PoE Injector Adapter Advantages

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000/2.5G/5G Base-TX

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Forward
	Half-duplex, Full-duplex
Forward Filter Rate:	7,440,000pps (5Gbps)
Cabling:	10/100/1000/2.5G/5G Base-T: Cat7 or above
Maximum Distance:	Cat7 UTP up to 30m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)

Overview

12~48V DC Power Input Industrial 5G 30W PoE+ Injector 0

Ordering Information

Model	Description
LNK-INJ501-30	12~48VDC Power Input Industrial 5G PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
