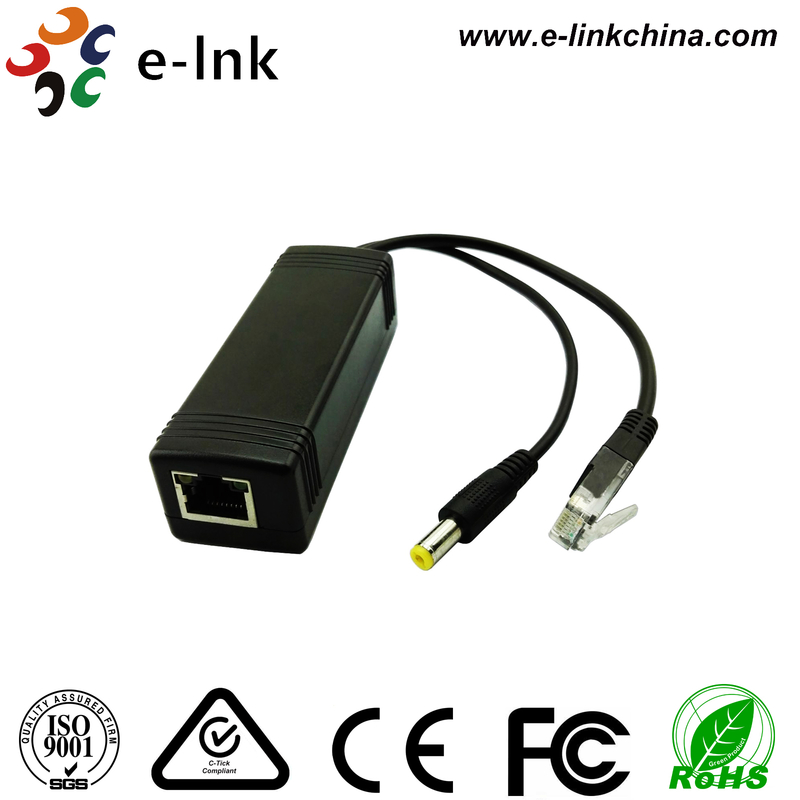

10/100/1000M 5V 3A PoE Splitter

Name: 10/100/1000M 5V 3A PoE Splitter
Brand: E-link China Technology Co.,LTD
SKU: LNK-SP15WG
Price: 42.90 USD
Availability: InStock

Ürün Ayrıntıları

Menşe yeri: Çin

Marka adı: E-link

Sertifika: ISO9001, CE, FCC, RoHS

Model numarası: LNK-SP15WG

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 1 adet

Fiyat: Negotiated

Ambalaj bilgileri: Standart İhracat Paketi

Teslim süresi: 3-7 iş günü

Ödeme koşulları: T/T,PayPal

Yetenek temini: 1000 adet/ağız

En İyi Fiyatı Bulun

Şimdi iletişime geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:

Anahtar kelimeler:	PoE Güç Bölücü	DC çıkışı:	5V 3A
Güç:	15W	Ağırlık:	0.2kg
Çalışma sıcaklığı:	-20°~55°C	Depolama sıcaklığı:	-40 ° ～ 85 ° C

Anahtar kelimeler:	PoE Güç Bölücü
DC çıkışı:	5V 3A
Güç:	15W
Ağırlık:	0.2kg
Çalışma sıcaklığı:	-20°~55°C
Depolama sıcaklığı:	-40 ° ～ 85 ° C

Açıklama

10/100/1000M 5V 3A PoE Splitter

10/100/1000M 5V 3A PoE Splitter

Advantage

► DC output 5V 3A

► 52V: MAX transmission 150M (With full copper low resistance network lines)

► Comply to IEEE802.3af/at

► Power Input:DC38～56V

► Plug＆Play

► Built-in high performance chip and high specification circuit board

► Stable:AKros AS1138, with lightning protection

► RJ45 full shield por

► Full bridge design, non polarity input

Overview

LNK-SP15WG PoE splitter, Develop used for Ethernet power supply application scenarios,

device does not support POE input Situation; support “IEEE 802.3af” and “IEEE 802.3at”

POE power supply; DC output 5V 3A; The POE signal can be separated into network

signal and electric power.

PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand

wireless city, Security monitoring and other poe practical place, and is not restricted by layout

of power line.

Technical Indexes

Model	LNK-SP15WG
DC out	5V 3A
Power	15W
distance	10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m) 1000BASE-TX: cat 5 and above UTP(≤100m)
Port	1 GE(10/100/1000M) POE input+1 Network+1 DC output
POE	IEEE POE++/IEEE 802.3af /IEEE802.3at, IEEE802.1af DTE Power via MDI
Network protocol	IEEE 802.3i 10BASET； IEEE 802.3u 100BASETX； IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control
Environmental	Working Temperature:-20°～55°C Storage temperature:-40°～85°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing
Radiation	CE mark,commercial,FCC Part 15 Class B,RoHS
Product Size	250mm28mm24mm
Weight	0.2kg
